TERALUME - T3 Single Row LED Light Bar

The Teralume T3 50 Inch LED Light Bar delivers powerful lighting in a slim and compact design. It is ideal when you want strong performance without adding a bulky light bar to your vehicle. In addition, the T3 works well on nudge bars, bull bars and roof-mounted setups.

With 14,367 effective lumens, the T3 provides strong illumination after dark. Furthermore, its 50 KW Osram® 5700K LEDs deliver clear and consistent light. The combo beam also combines broad coverage with focused forward illumination. As a result, you can light up more of the road or track ahead.

Slim and Powerful 50 Inch Light Bar

The T3 is the most compact light bar in the Teralume range. Therefore, it suits vehicles where space and appearance matter. Its slim profile keeps the installation discreet, while its high-output LED system provides plenty of light when you need it.

Moreover, the 6061 aluminium extrusion housing provides a strong and durable structure. The light bar also features vibration dampening and shockproof protection up to 28G. Consequently, it is well suited to demanding off-road conditions.

Osram KW LED Technology

The T3 uses 50 KW Osram® 5700K LEDs. These top-binned LEDs provide clear light and strong performance after dark. In addition, the LEDs work with the combo beam pattern to provide useful forward coverage.

Therefore, the T3 can be a practical choice for off-road driving, touring and other applications that require additional lighting.

Key Features

• 50-inch Teralume T3 LED light bar

• 14,367 effective lumens

• 50x KW Osram® 5700K LEDs

• Combo beam pattern

• 250W / 12.72A at 12V DC

• 9–36V DC operating voltage

• IP69K water protection up to 3 metres

• Shockproof and vibration dampened to 28G

• 6061 aluminium extrusion housing

• 5mm brushed stainless steel side brackets

• Waterproof Deutsch® connector

• Reverse polarity protection

• CISPR25 interference protection

• 5-year replacement warranty

Two Mounting Options

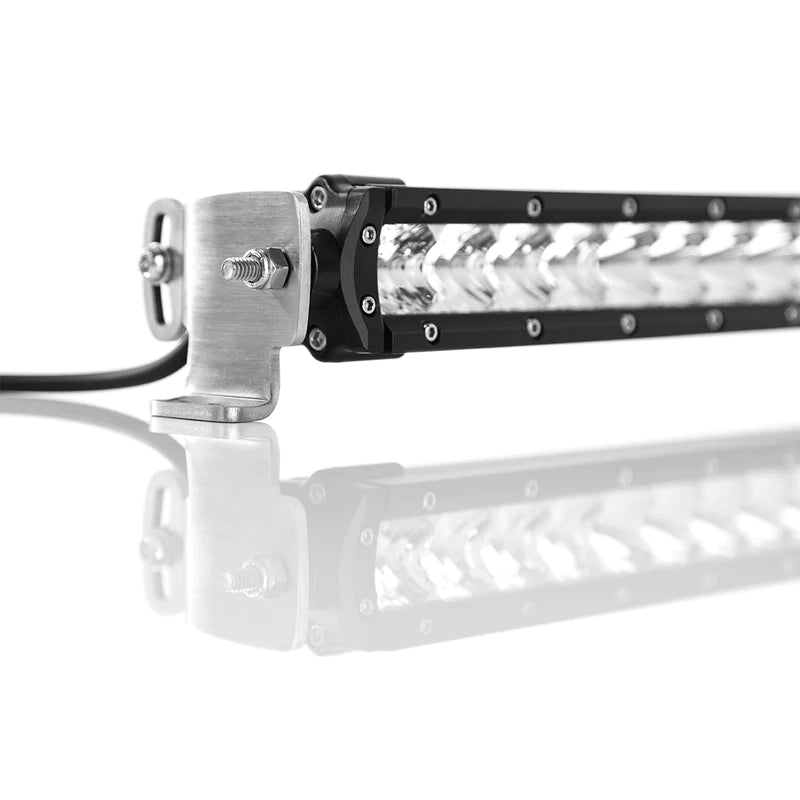

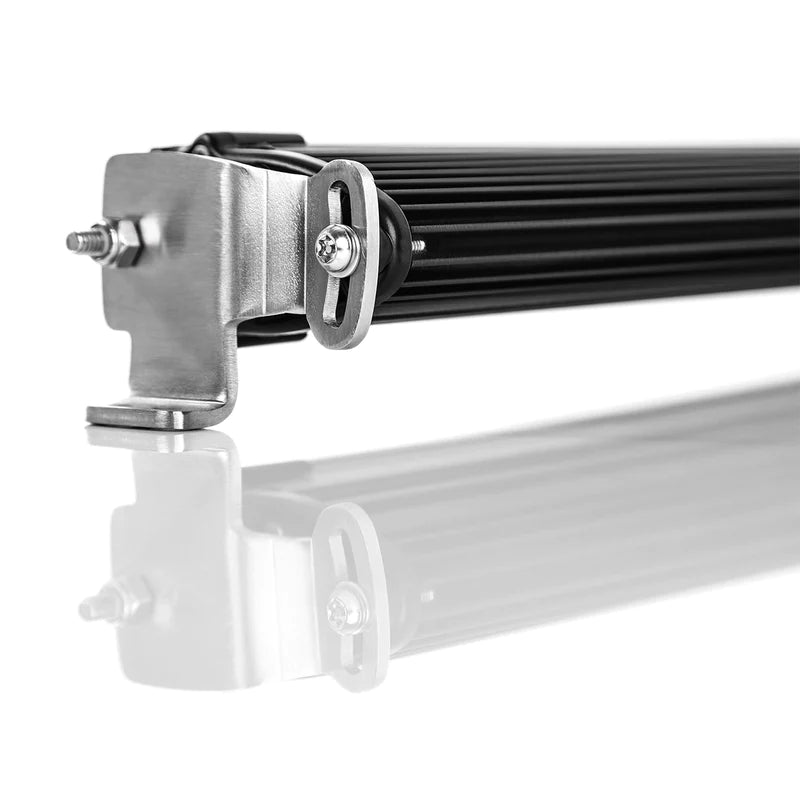

The T3 comes with a 5mm stainless steel side mounting system and hardware. Furthermore, optional slide mounts provide another way to position the light bar.

The optional slide mounts can help create a cleaner and more flexible installation. As a result, you can select the mounting setup that best suits your vehicle and available mounting space.

Easy Wiring and Installation

The T3 includes a 150mm tail and waterproof Deutsch connector. In addition, a Quick Fit wiring harness is available as an optional accessory. This makes the installation process easier and helps create a neat connection.

Optional accessories include:

• Slide mounts

• Light bar wiring harness

• Anti-theft kit for slide mounts

What’s in the Box?

Each Teralume T3 50 Inch LED Light Bar package includes:

• 1x Teralume Industries™ T3 50 Inch Light Bar

• 400mm cable

• 150mm tail with DT06 Deutsch connector

• 5mm stainless steel side mounting system

• Mounting hardware

Overall, the Teralume T3 50 Inch LED Light Bar combines a compact design with high-output lighting performance. With 14,367 effective lumens, KW Osram® LEDs, a combo beam and IP69K protection, it provides a strong lighting solution for demanding conditions. Moreover, the two mounting options and optional wiring accessories make it easier to create a clean installation.
