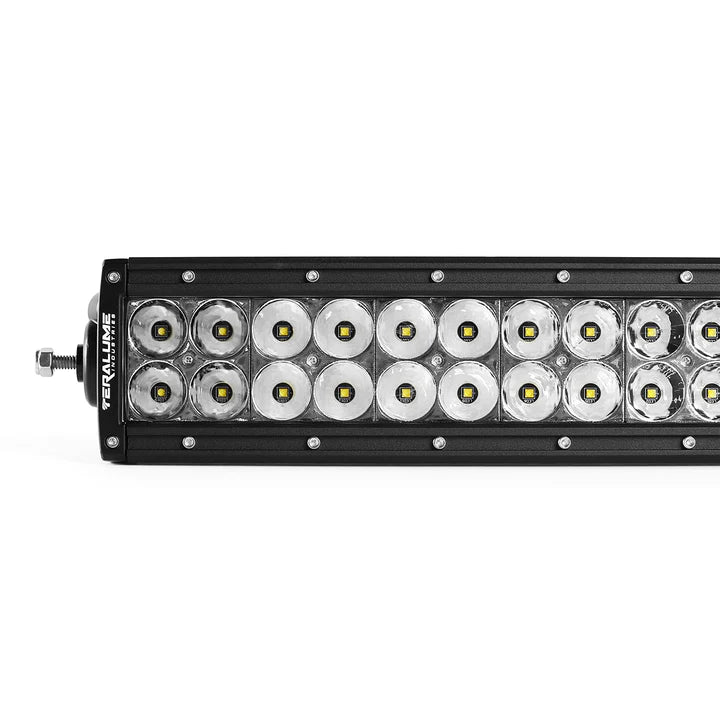

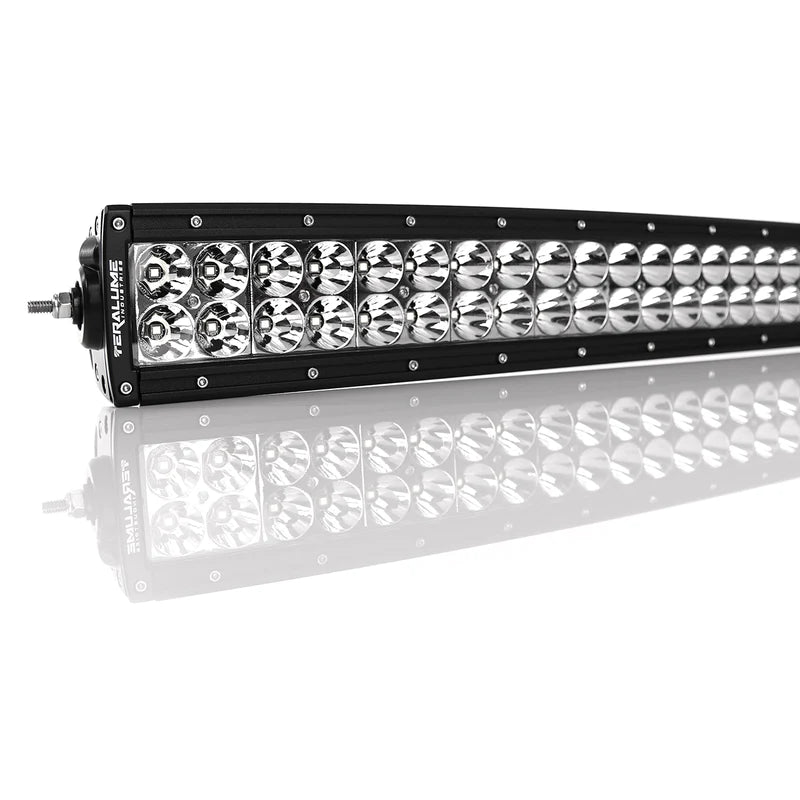

TERALUME - T9 Curved Light Bar

The Teralume T9 Curved Light Bar delivers high-output lighting with a design made for modern vehicles. Its gentle curved shape follows the natural arc between the windscreen and roof. Therefore, it is particularly suitable for roof-mounted installations.

With 24,360 effective lumens, the T9 provides powerful forward illumination after dark. Furthermore, it uses 100 KW Osram® 5700K LEDs and parabolic spot reflectors to create a strong 10-degree spot beam. As a result, the T9 can provide a long and focused beam for night driving and off-road use.

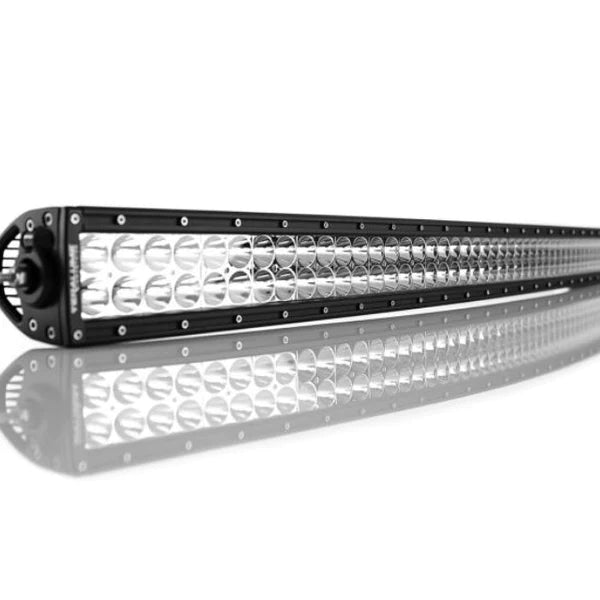

Curved LED Light Bar for Modern Vehicles

The T9 features a subtle curved profile that complements modern vehicle designs. In addition, the curved shape works well when the light bar sits above the windscreen.

Because of this design, the T9 can create a clean and integrated appearance rather than looking like a flat light bar added to the roof. Moreover, its aluminium mounting system and hardware are included, making installation more straightforward.

Powerful 24,360 Lumen Performance

The T9 produces 24,360 effective lumens from 100 KW Osram® LEDs. Furthermore, its 10-degree spot beam focuses light ahead of the vehicle.

The parabolic spot reflectors create what Teralume describes as a “wall of light” effect. Therefore, the T9 provides strong forward illumination for dark roads, tracks and off-road environments.

Key Features

• Teralume T9 curved LED light bar

• 24,360 effective lumens

• 100x KW Osram® 5700K LEDs

• 10-degree spot beam

• Parabolic spot reflectors

• 500W / 19.13A at 12V DC

• 9–36V DC multivolt operation

• IP69K water protection up to 3 metres

• Vibration dampened and shockproof to 28G

• 6061 aluminium extrusion housing

• Waterproof Deutsch® connector

• Reverse polarity protection

• CISPR25 interference rated

• 5-year replacement warranty

• Aluminium end mounting system and hardware included

Osram KW LED Technology

The T9 uses KW Osram® 5700K LEDs from Teralume’s T-range. These top-binned LEDs provide clear illumination and strong performance after dark.

In addition, the 5700K colour temperature produces a crisp white light. Therefore, the T9 can provide useful visibility for drivers who need powerful forward lighting during night travel.

Durable Construction for Off-Road Use

The T9 combines its LED system with a 6061 aluminium extrusion housing. Furthermore, the light bar features vibration dampening and shockproof protection up to 28G.

It also carries an IP69K rating and can withstand water exposure up to 3 metres, according to the supplied specifications. As a result, the T9 is designed for demanding driving environments.

Easy Installation

The T9 includes an aluminium side mounting system and hardware. In addition, it comes with a 150mm tail and DT06 Deutsch connector.

For easier wiring, you can also add the optional Light Bar Wiring Harness. Therefore, you can select the wiring setup that best suits your vehicle.

What’s in the Box?

Each Teralume T9 Curved Light Bar includes:

• 1x Teralume Industries™ T9 Curved Light Bar

• 400mm cable

• 150mm tail with DT06 Deutsch connector

• Side mounting system and hardware

Optional accessory:

• Light Bar Wiring Harness

Overall, the Teralume T9 Curved Light Bar combines a curved vehicle-friendly design with powerful forward lighting. With 24,360 effective lumens, 100 Osram® LEDs and a 10-degree spot beam, it delivers strong illumination for night driving. Moreover, its IP69K protection, 28G shock resistance and durable aluminium housing make it suitable for demanding applications.
