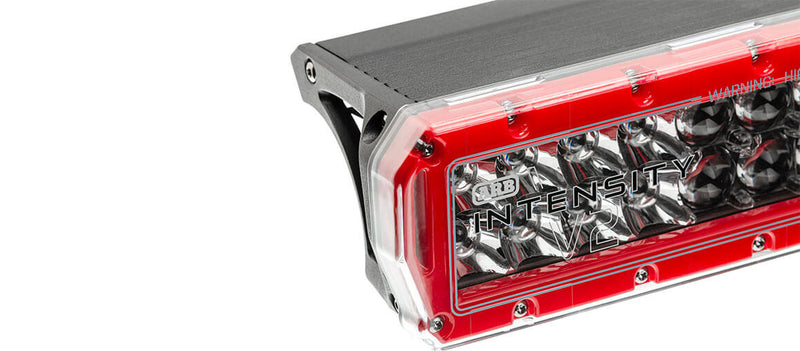

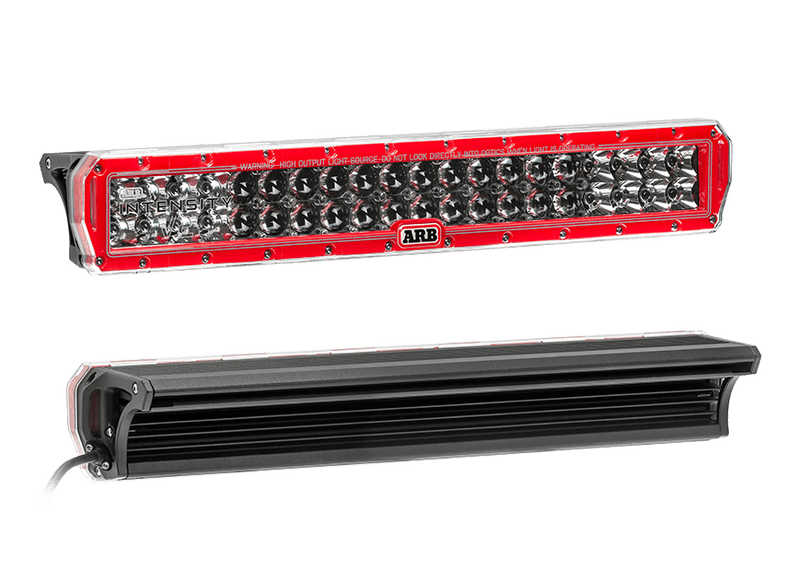

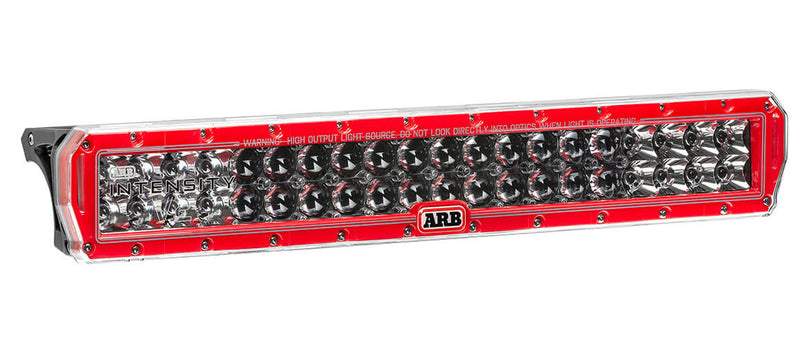

Engineered in Australia and manufactured in the United States using the same patented lens/reflector technology as ARB’s existing Intensity LED driving lights, the ARB Intensity V2 LED light bar utilises Hyperspot™ optics and advanced flood optics to intensify the light output of the 40 OSRAM LEDs (2 rows of 20) encased in a virtually indestructible polycarbonate lens and powder coated, extruded aluminium body with high-pressure die-cast end caps.

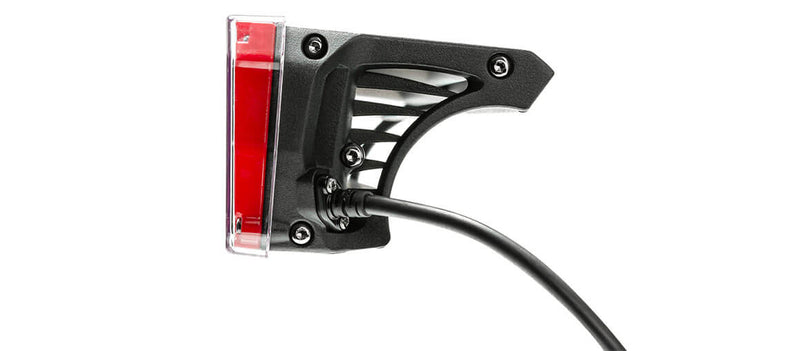

Designed to integrate with the top tube of the bull bar, the AR40 V2’s extruded alloy housing wraps around the tube, providing a low-profile integration with the bar work to maximise airflow to the cooling system and reduce obstructions. Its unique tube clamp mounting system sits out of view and delivers incredible stability for off-road use, eliminating vibration while being adjustable so that it won’t interfere with aerial mounting tabs, leaving them free to be used for their intended function.

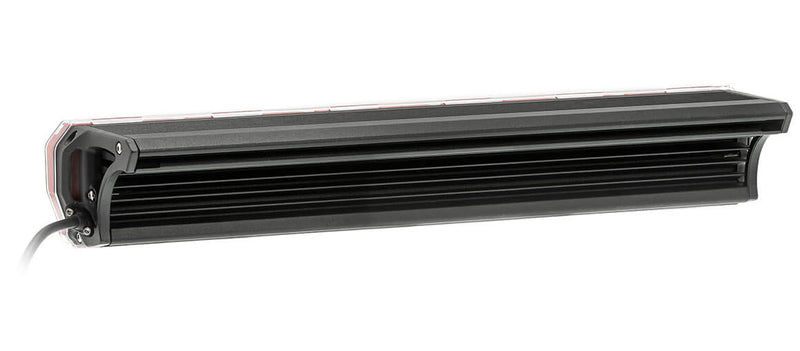

Performance is paramount, with a heat sink that has over 435,000 mm² of surface area, allowing the light bar to dissipate heat quickly and operate at optimum efficiency even when the vehicle is stationary or at low speed.
Integral to the design is a range of virtually indestructible, moulded polycarbonate covers, hard-coated for scratch and UV resistance and available in a range of colours to further enhance protection from the elements.
Available Accessories
BULL BAR MOUNTING KITS
For an integrated fit to your vehicle, mounting kits are designed specifically for ARB bull bars and are available in three sizes to cater for different tube diameters. Each kit is manufactured from extruded aluminium and incorporates stainless steel fasteners. |
PEDESTAL MOUNTING KIT
For increased versatility, an alternative to the bull bar mount is the pedestal mounting kit, enabling fitment to the pan of a bull bar or a roof rack. All fasteners are manufactured from stainless steel, with mounting hardware manufactured from a combination of aluminium and steel. |
INTENSITY LIGHT BAR COVERS
Manufactured from polycarbonate and hard coated for scratch and UV resistance, these covers will protect your Intensity light bar from the elements. Available in clear, amber and solid black. |
Product Specification
|
SPECS |
AR40CV2 COMBO |
|
Input |
9-36V DC |
|
Current Draw |
21A at 14.4V |
|
Lux at 1m |
926 |
|
Operating Temperature |
-40°C to 63°C (-40°F to 145°F) |
|
Weight |
4.05kg |
|
Power |
305W |
|
Output |
25,080 raw lumens |
|
Spread |
6° spot / 20° flood |
|
Colour Temperature |
5700K |
|
Dimensions |
560mm x 91mm x 125mm |
Engineered in Australia and manufactured in the United States using the same patented lens/reflector technology as ARB’s existing Intensity LED driving lights, the ARB Intensity V2 LED light bar utilises Hyperspot™ optics and advanced flood optics to intensify the light output of the 40 OSRAM LEDs (2 rows of 20) encased in a virtually indestructible polycarbonate lens and powder coated, extruded aluminium body with high-pressure die-cast end caps.
Designed to integrate with the top tube of the bull bar, the AR40 V2’s extruded alloy housing wraps around the tube, providing a low-profile integration with the bar work to maximise airflow to the cooling system and reduce obstructions. Its unique tube clamp mounting system sits out of view and delivers incredible stability for off-road use, eliminating vibration while being adjustable so that it won’t interfere with aerial mounting tabs, leaving them free to be used for their intended function.
Performance is paramount, with a heat sink that has over 435,000 mm² of surface area, allowing the light bar to dissipate heat quickly and operate at optimum efficiency even when the vehicle is stationary or at low speed.
Integral to the design is a range of virtually indestructible, moulded polycarbonate covers, hard-coated for scratch and UV resistance and available in a range of colours to further enhance protection from the elements.
Available Accessories
BULL BAR MOUNTING KITS
For an integrated fit to your vehicle, mounting kits are designed specifically for ARB bull bars and are available in three sizes to cater for different tube diameters. Each kit is manufactured from extruded aluminium and incorporates stainless steel fasteners. |
PEDESTAL MOUNTING KIT
For increased versatility, an alternative to the bull bar mount is the pedestal mounting kit, enabling fitment to the pan of a bull bar or a roof rack. All fasteners are manufactured from stainless steel, with mounting hardware manufactured from a combination of aluminium and steel. |
INTENSITY LIGHT BAR COVERS
Manufactured from polycarbonate and hard coated for scratch and UV resistance, these covers will protect your Intensity light bar from the elements. Available in clear, amber and solid black. |
Product Specification
|
SPECS |
AR40CV2 COMBO |
|
Input |
9-36V DC |
|
Current Draw |
21A at 14.4V |
|
Lux at 1m |
926 |
|
Operating Temperature |
-40°C to 63°C (-40°F to 145°F) |
|
Weight |
4.05kg |
|
Power |
305W |
|
Output |
25,080 raw lumens |
|
Spread |
6° spot / 20° flood |
|
Colour Temperature |
5700K |
|
Dimensions |
560mm x 91mm x 125mm |
