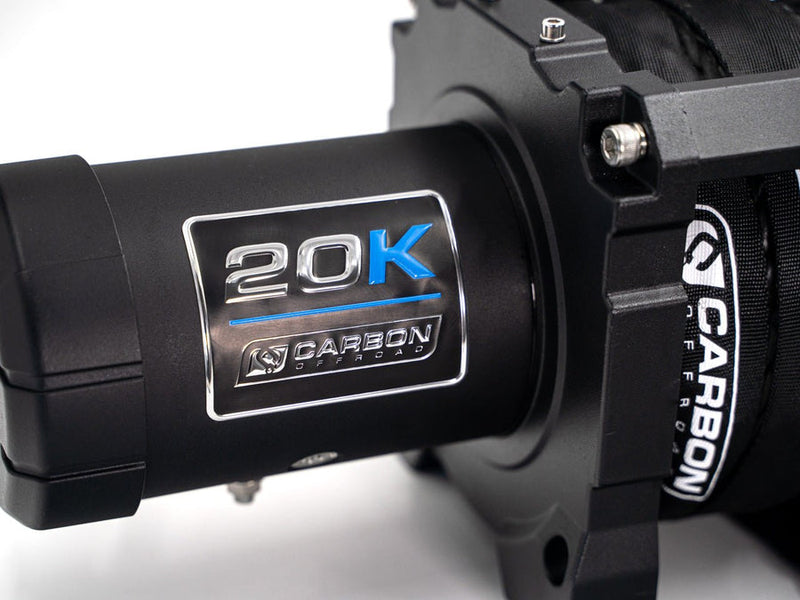

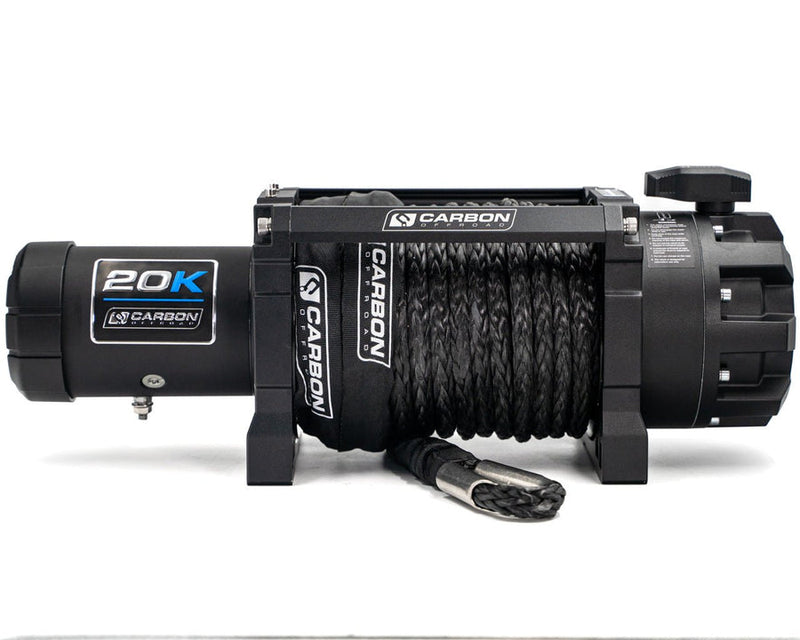

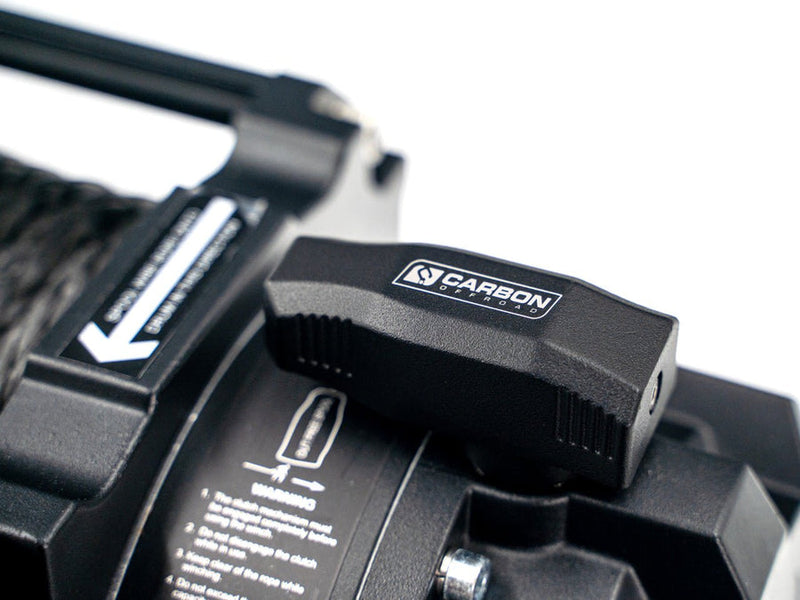

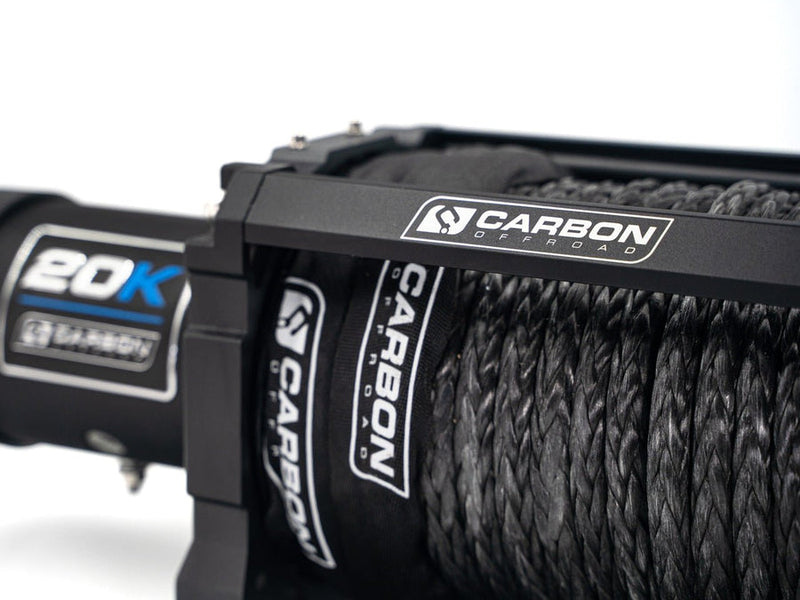

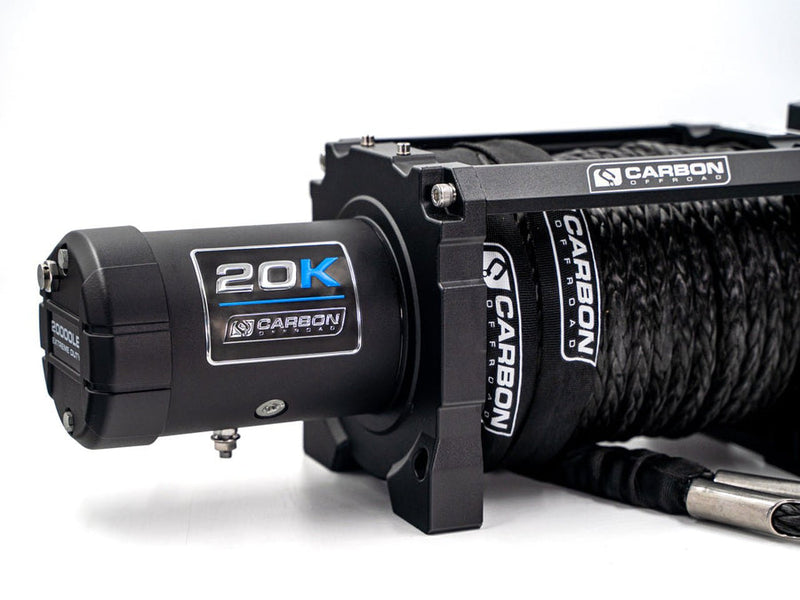

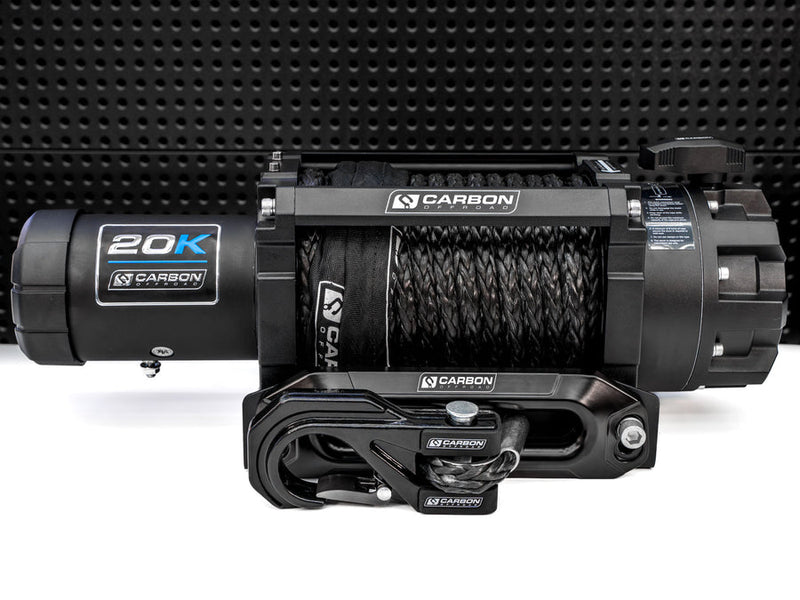

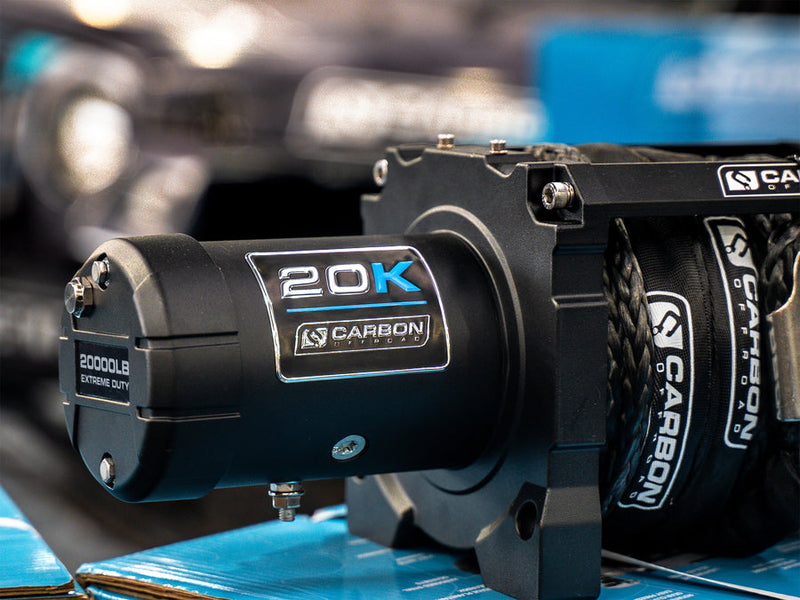

The Carbon Scout Pro is a 20,000 lb rated extreme duty truck winch designed for demanding recovery tasks. Featuring a robust 3-stage planetary geartrain with a 345:1 ratio, it delivers powerful and reliable line pull. Equipped with a 25m synthetic rope and a premium CNC billet multi-position fairlead, it ensures smooth operation and durability. The winch includes both wired and wireless remote controls for versatile handling, an automatic brake system, and a rotating ring gear for enhanced performance. Backed by a lifetime mechanical and 5-year electrical warranty, it offers lasting confidence in the toughest conditions.
- Part number: CW-XD20
- Rated line pull: 20000 lbs, (9072kg) single-line
- Motor: 12V DC 7 HP series wound motor (24V option available)
- Remote Control: Wired with 3.6m lead
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary
- Gear Ratio: 345:1
- Rotating Ring Gear
- Brake: Automatic brake in the motor bracket
- Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
- Synthetic Rope: 25m x 13mm diameter
- Drum Diameter/Length: 88mm x 224mm
- Mounting Bolt Pattern: 254mm x 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 579 x 192 x 224mm
- Packing Dimensions (L x W x H): 640 x 250 x 345mm
- Winch weight with synthetic rope attached: 30kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 37kg
The Carbon Scout Pro is a 20,000 lb rated extreme duty truck winch designed for demanding recovery tasks. Featuring a robust 3-stage planetary geartrain with a 345:1 ratio, it delivers powerful and reliable line pull. Equipped with a 25m synthetic rope and a premium CNC billet multi-position fairlead, it ensures smooth operation and durability. The winch includes both wired and wireless remote controls for versatile handling, an automatic brake system, and a rotating ring gear for enhanced performance. Backed by a lifetime mechanical and 5-year electrical warranty, it offers lasting confidence in the toughest conditions.
- Part number: CW-XD20
- Rated line pull: 20000 lbs, (9072kg) single-line
- Motor: 12V DC 7 HP series wound motor (24V option available)
- Remote Control: Wired with 3.6m lead
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary
- Gear Ratio: 345:1
- Rotating Ring Gear
- Brake: Automatic brake in the motor bracket
- Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
- Synthetic Rope: 25m x 13mm diameter
- Drum Diameter/Length: 88mm x 224mm
- Mounting Bolt Pattern: 254mm x 114.3mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 579 x 192 x 224mm
- Packing Dimensions (L x W x H): 640 x 250 x 345mm
- Winch weight with synthetic rope attached: 30kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 37kg
