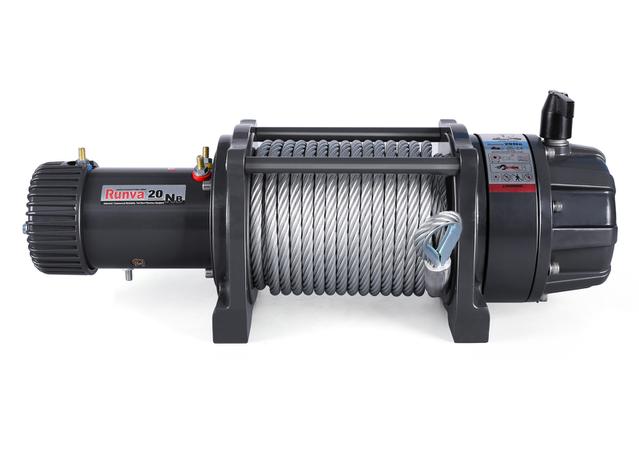

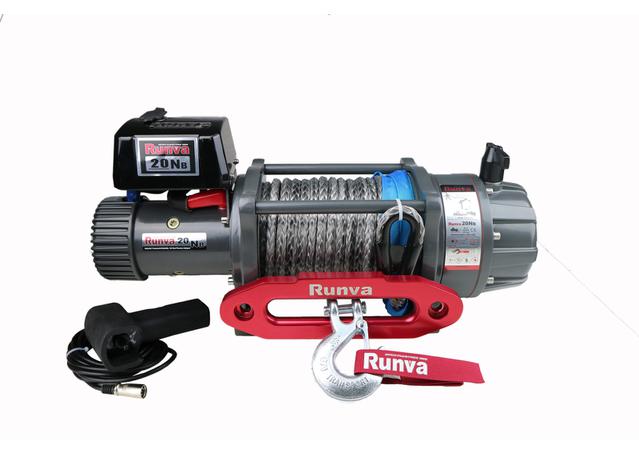

This model features the newly-designed gearbox with integrated ratchet braking system, rated to IP67 ingress protection. Ideal for most heavy-duty applications like camper trucks.
SPECIFICATIONS
RATED LINE PULL: 20000LB (9072KG)
MOTOR: SERIES WOUND (24V) 5.5KW/7.4HP - IP67 RATED
GEAR TRAIN: FULL STEEL 3 STAGE PLANETARY
GEAR RATIO: 370:1
BRAKE: AUTOMATIC RACHET LOAD HOLDING IN THE GEARBOX
CABLE TYPE: SYNTHETIC ROPE
CABLE SIZE: 12MM X 26.5M
DRUM SIZE: 88MM X 217M
MOUNTING BOLT PATTERN: 254MM X 114.3MM; 254MM X 165.1MM
OVERALL DIMENSIONS: 626.5MM X 214MM X 252MM
REMOTE CONTROL:3.7M HANDHELD REMOTE/WIRELESS REMOTE
BATTERY LEADS: 2 X 1.8M HEAVY DUTY LEADS
FINISH: GREY POWDER COAT
NET WEIGHT: 70KG
GROSS WEIGHT: 72.5KG (INCLUDES PACKAGING)
WARRANTY: LIMITED LIFETIME
SPECIFICATIONS
RATED LINE PULL: 20000LB (9072KG)
MOTOR: SERIES WOUND (24V) 5.5KW/7.4HP - IP67 RATED
GEAR TRAIN: FULL STEEL 3 STAGE PLANETARY
GEAR RATIO: 370:1
BRAKE: AUTOMATIC RACHET LOAD HOLDING IN THE GEARBOX
CABLE TYPE: SYNTHETIC ROPE
CABLE SIZE: 12MM X 26.5M
DRUM SIZE: 88MM X 217M
MOUNTING BOLT PATTERN: 254MM X 114.3MM; 254MM X 165.1MM
OVERALL DIMENSIONS: 626.5MM X 214MM X 252MM
REMOTE CONTROL:3.7M HANDHELD REMOTE/WIRELESS REMOTE
BATTERY LEADS: 2 X 1.8M HEAVY DUTY LEADS
FINISH: GREY POWDER COAT
NET WEIGHT: 70KG
GROSS WEIGHT: 72.5KG (INCLUDES PACKAGING)
WARRANTY: LIMITED LIFETIME
Decsription
This model features the newly-designed gearbox with integrated ratchet braking system, rated to IP67 ingress protection. Ideal for most heavy-duty applications like camper trucks.
SPECIFICATIONS
RATED LINE PULL: 20000LB (9072KG)
MOTOR: SERIES WOUND (24V) 5.5KW/7.4HP - IP67 RATED
GEAR TRAIN: FULL STEEL 3 STAGE PLANETARY
GEAR RATIO: 370:1
BRAKE: AUTOMATIC RACHET LOAD HOLDING IN THE GEARBOX
CABLE TYPE: SYNTHETIC ROPE
CABLE SIZE: 12MM X 26.5M
DRUM SIZE: 88MM X 217M
MOUNTING BOLT PATTERN: 254MM X 114.3MM; 254MM X 165.1MM
OVERALL DIMENSIONS: 626.5MM X 214MM X 252MM
REMOTE CONTROL:3.7M HANDHELD REMOTE/WIRELESS REMOTE
BATTERY LEADS: 2 X 1.8M HEAVY DUTY LEADS
FINISH: GREY POWDER COAT
NET WEIGHT: 70KG
GROSS WEIGHT: 72.5KG (INCLUDES PACKAGING)
WARRANTY: LIMITED LIFETIME
SPECIFICATIONS
RATED LINE PULL: 20000LB (9072KG)
MOTOR: SERIES WOUND (24V) 5.5KW/7.4HP - IP67 RATED
GEAR TRAIN: FULL STEEL 3 STAGE PLANETARY
GEAR RATIO: 370:1
BRAKE: AUTOMATIC RACHET LOAD HOLDING IN THE GEARBOX
CABLE TYPE: SYNTHETIC ROPE
CABLE SIZE: 12MM X 26.5M
DRUM SIZE: 88MM X 217M
MOUNTING BOLT PATTERN: 254MM X 114.3MM; 254MM X 165.1MM
OVERALL DIMENSIONS: 626.5MM X 214MM X 252MM
REMOTE CONTROL:3.7M HANDHELD REMOTE/WIRELESS REMOTE
BATTERY LEADS: 2 X 1.8M HEAVY DUTY LEADS
FINISH: GREY POWDER COAT
NET WEIGHT: 70KG
GROSS WEIGHT: 72.5KG (INCLUDES PACKAGING)
WARRANTY: LIMITED LIFETIME
