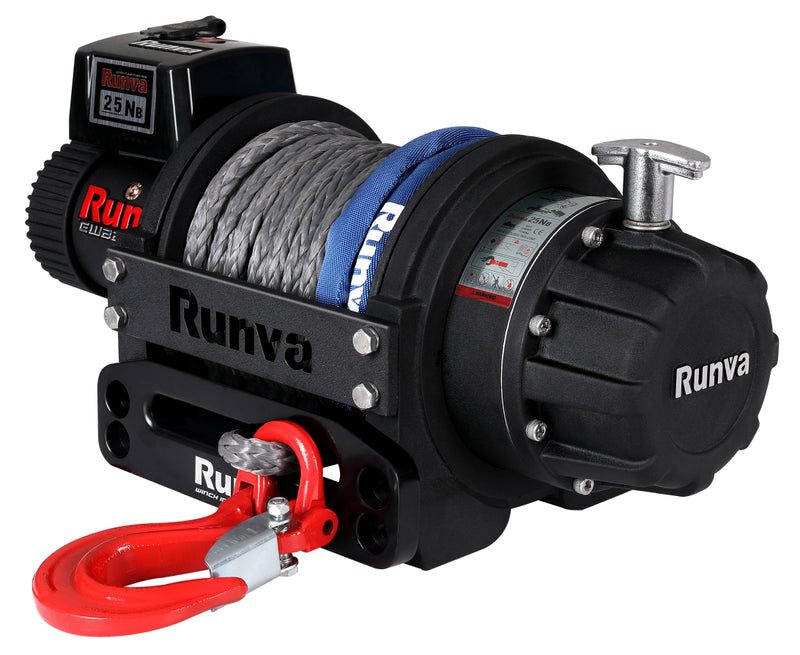

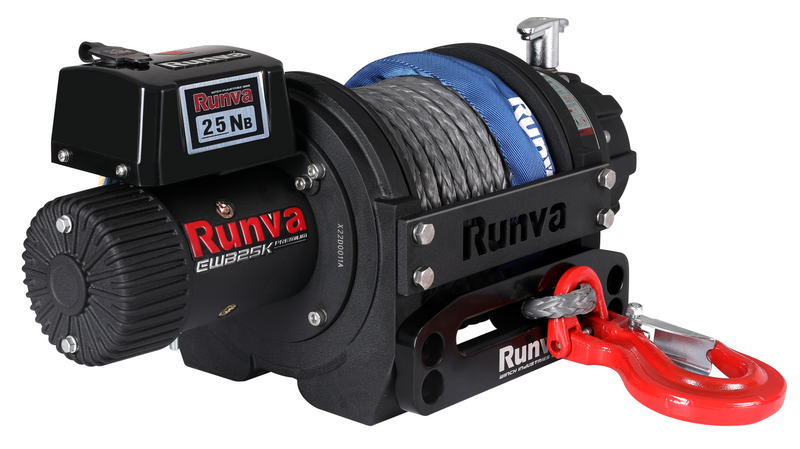

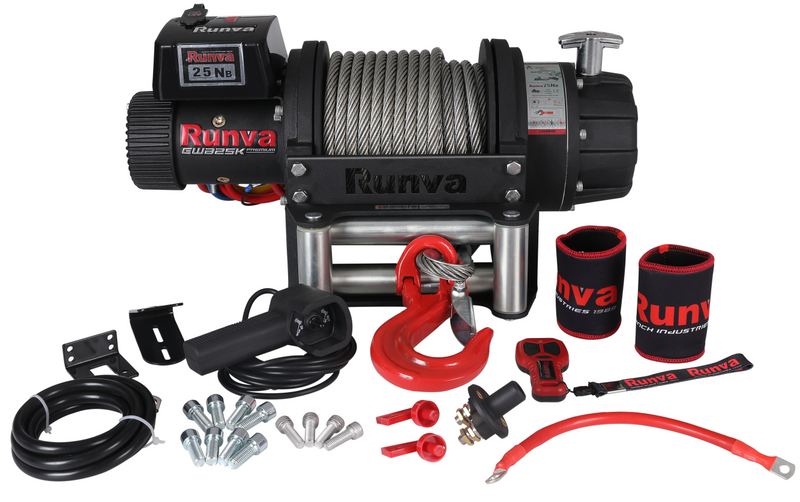

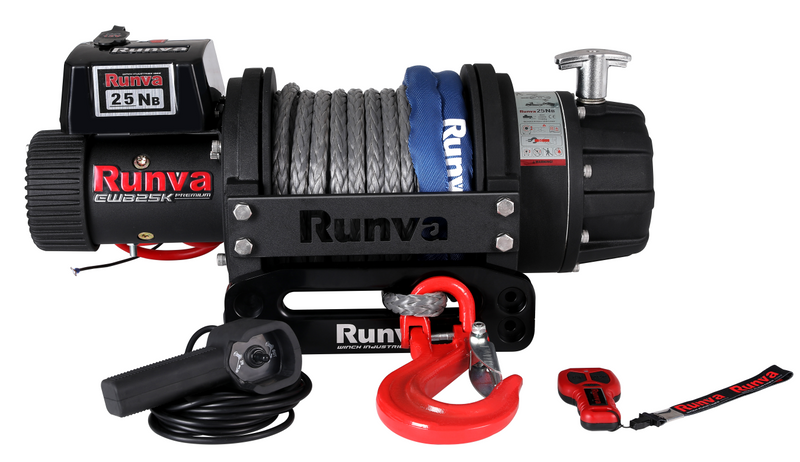

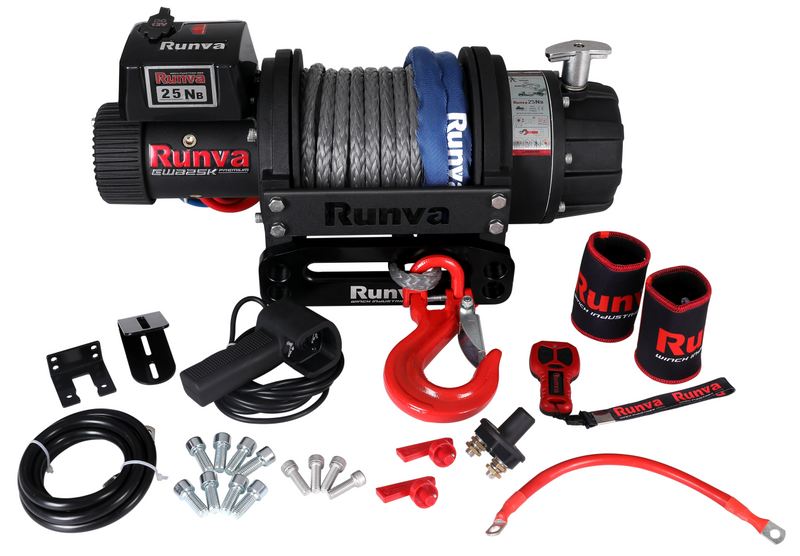

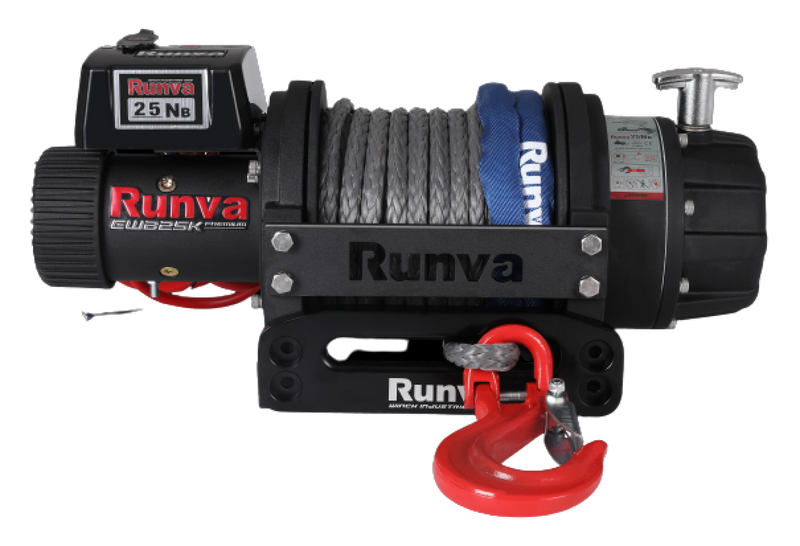

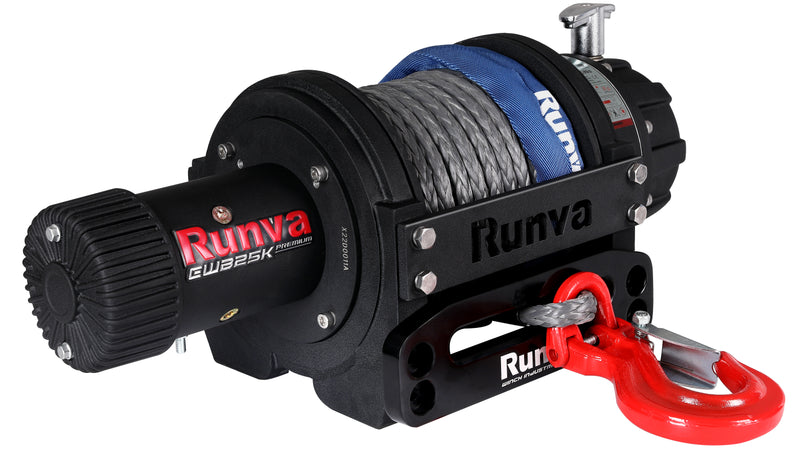

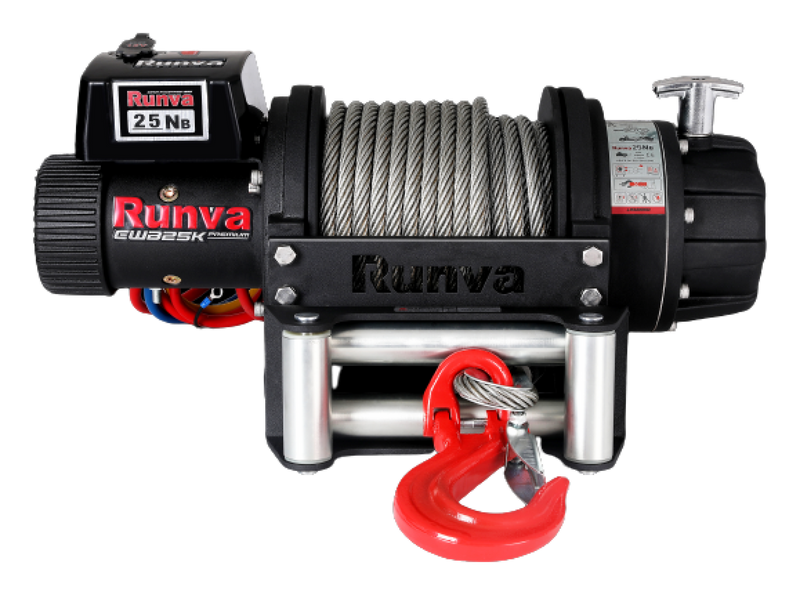

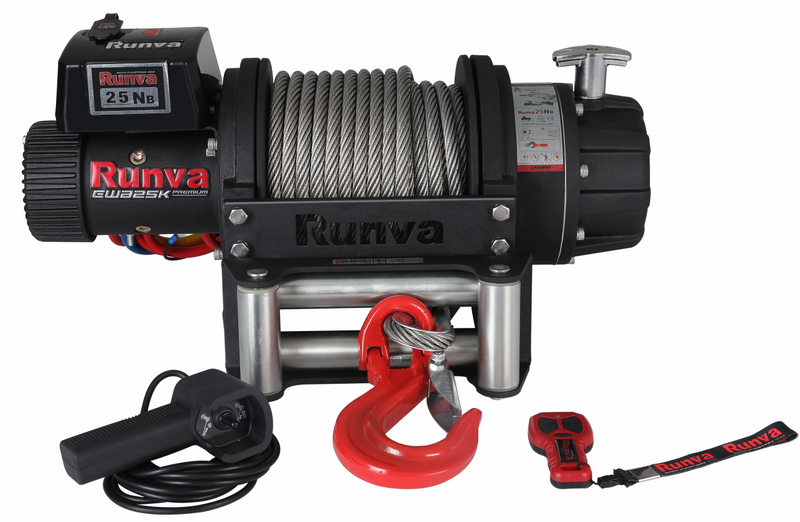

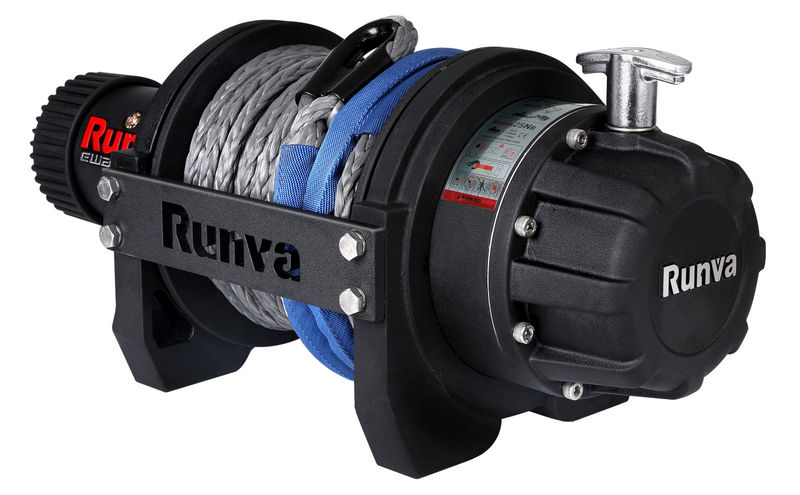

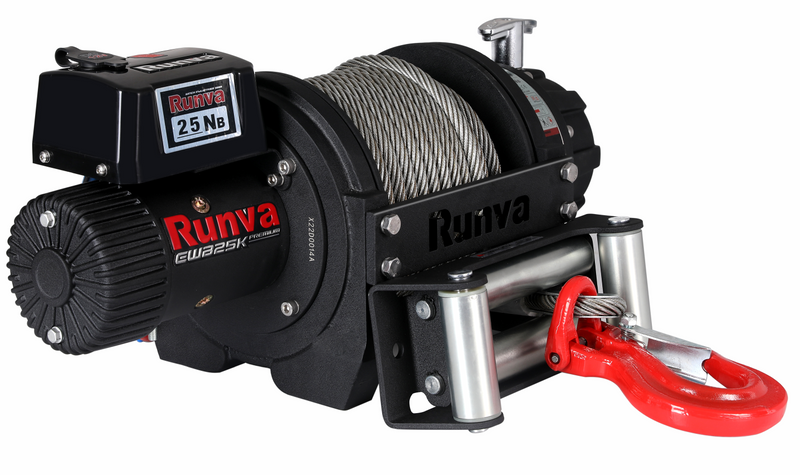

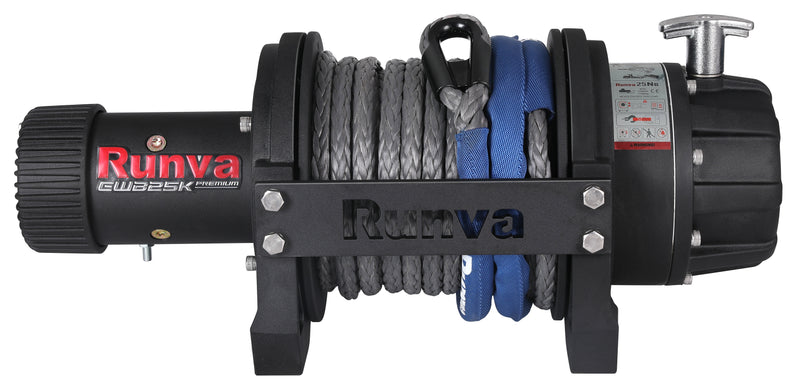

The Runva EWB25000 Premium 24V winch is designed for the toughest tasks, featuring an industry-leading 25,000lbs of line pull and a three-stage planetary gearbox for powerful and safe operation. IP67 ingress protection and a reliable ratchet brake make the EWB25000 perfect for commercial and recreational applications.
This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.

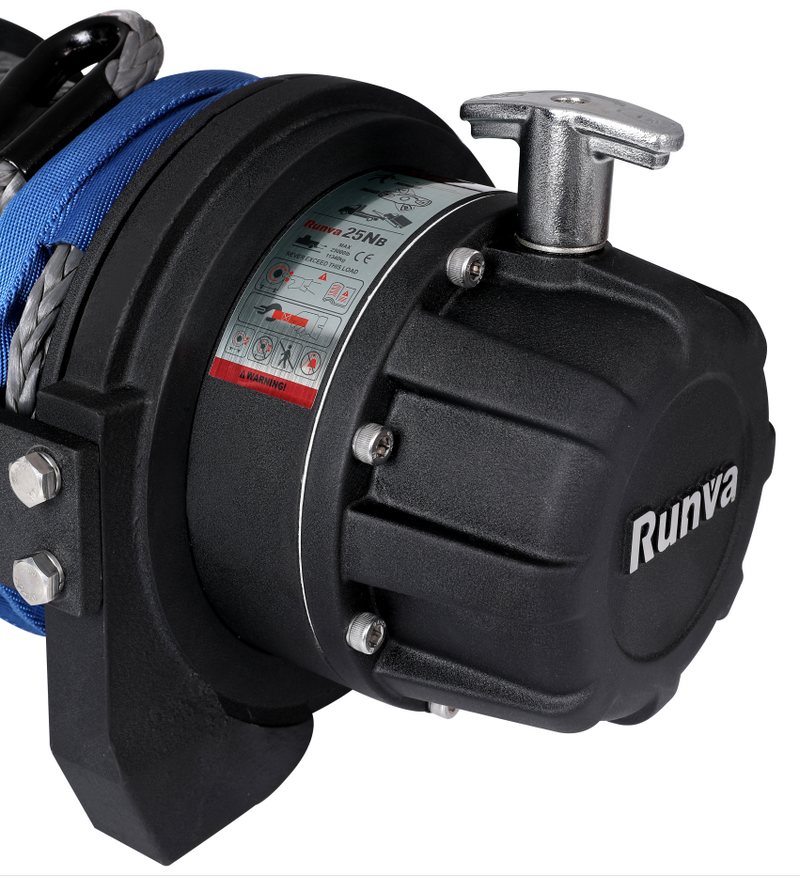

The clutch is easily engaged/disengaged via the Rotary Clutch system. The EWB25000 Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control. An optional extra cable tensioner can also be supplied for commercial applications.
If you are looking for a heavy duty winch, for either recreational or commercial applications, the EWB25000 Premium is the winch for you. This model is perfect for your expedition Unimog, Iveco Daily, Tow Truck, marine or military applications. (+ many other applications)
- MASSIVE 25,000LB LINE PULL CAPACITY
- IP67 INGRESS PROTECTED
- RATCHET STYLE BRAKE IN GEARBOX
- EXTREME DUTY – SUITABLE FOR COMMERCIAL APPLICATIONS
- AVAILABLE IN 12V AND 24V

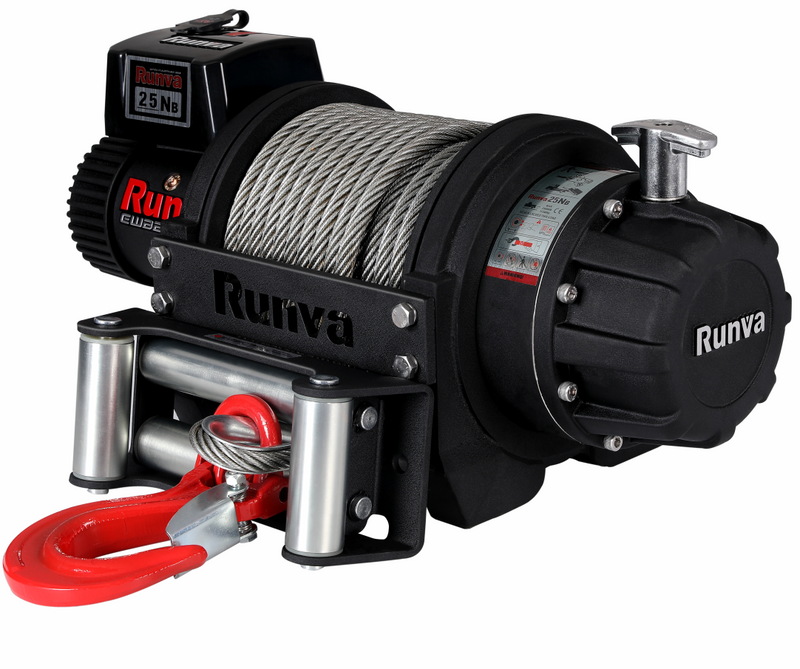

- STEEL CABLE OPTION AVAILABLE
- AIR FREESPOOL CLUTCH AVAILABLE
- ONE SERIOUSLY STRONG WINCH
(8X M12 BOLTS)
| LINE PULL LB (KG) | LINE SPEED FT/MIN (M/MIN) |
MOTOR CURRENT (AMP) |
LAYER OF CABLE | RATED LINE PULL LB (KG) | TOTAL ROPE ON DRUM FT (M) |
|---|---|---|---|---|---|
| 0 | 30.5 (9.3) | 23 | 1 | 25,000 (11,340) | 17.8 (5.4) |
| 5,000 (2,268) | 11.1 (3.4) | 90 | 2 | 20,724 (9,400) | 39.4 (12.0) |
| 10,000 (4,538) | 8.2 (2.5) | 140 | 3 | 17,698 (8,027) | 64.3 (19.7) |
| 15,000 (6,804) | 6.6 (2.0) | 180 | 4 | 15,443 (7,005) | 86.9 (26.5) |
| 20,000 (9,072) | 5.2(1.6) | 230 | |||
| 25,000 (11,340) | 3.9 (1.2) | 280 |
